Note: Use "CMOS" interface mode on 56K modem. (dip switch S4, switch 1 ON)

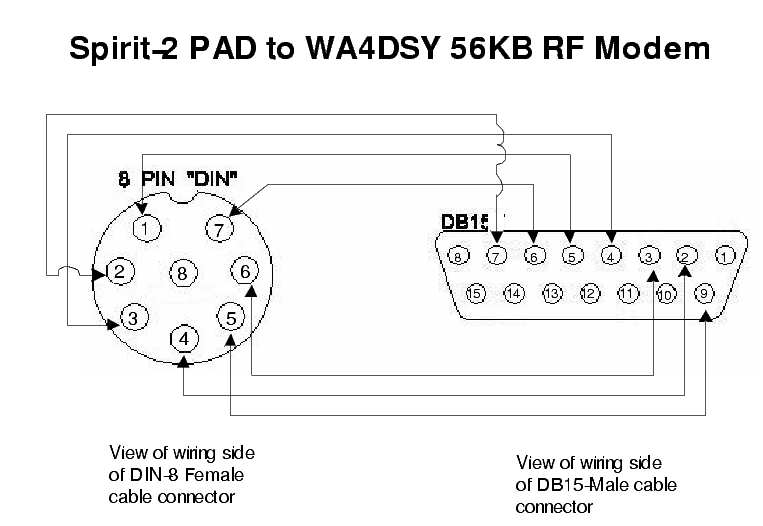

56K modem 15 pin connector signal names
- 1.No connection
- 2.Receive Clock (out)
- 3.Receive Data (out)
- 4.Transmit Clock (out)
- 5.Carrier detect (out, low true)
- 6.Transmit Data (in)
- 7.Request to Send (in, low true)
- 8.Mode Select (in, Not Used)
- 9.Ground
- 10..15 Do not connect
This information was supplied by
Will Hrudey, whrudey@mdsi.bc.ca
I have not tested it myself and make no
warranty as to it's accuracy.
